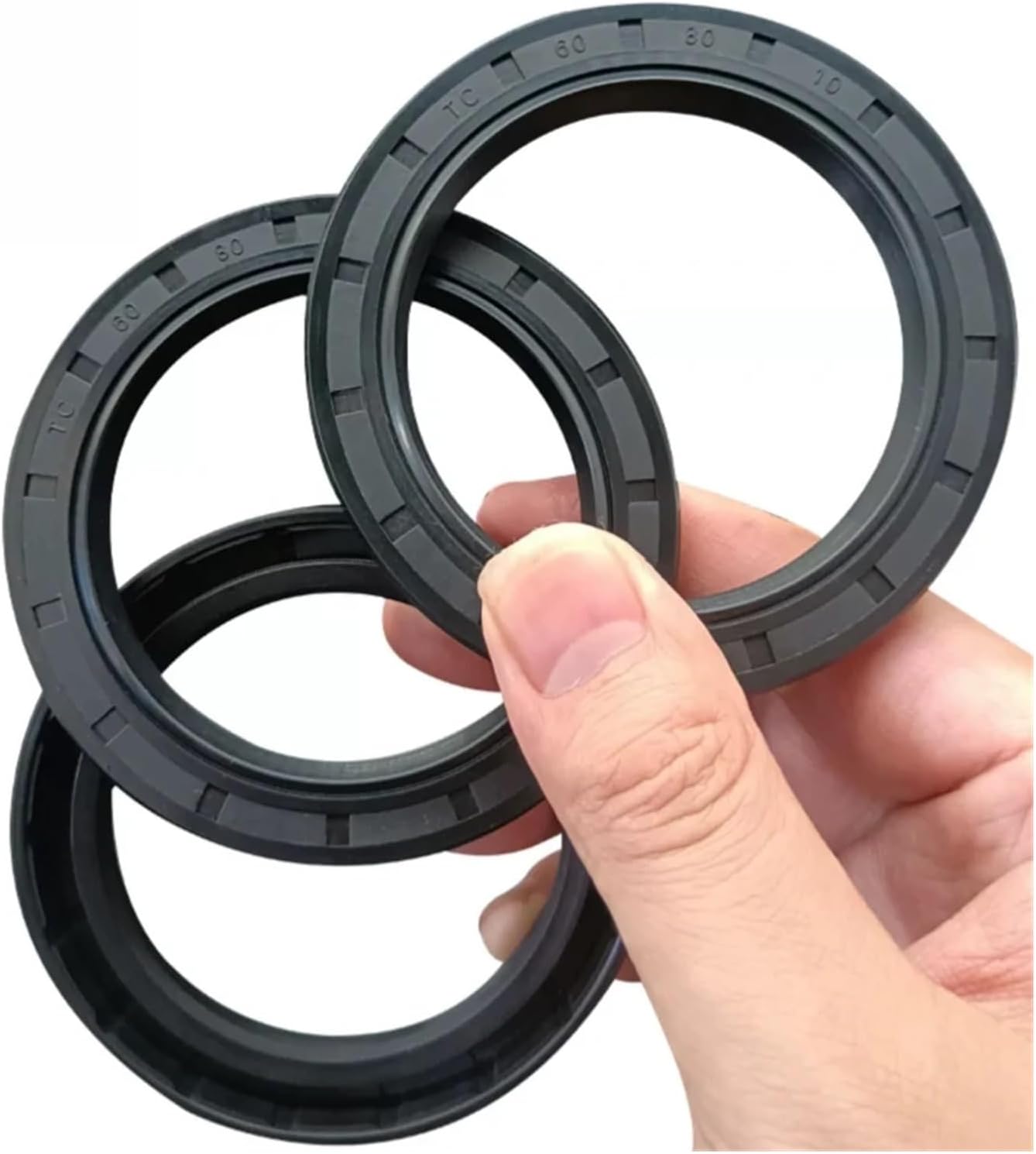

Hardware Fittings ID 23-24mm NBR Oil Seal Nitrile Rubber Double Lip TC/KC/VC/TG Type for Shaft OD 30-52mm Height 4-12mm 10Pcs in a Pack Seal Washer(24x45x6)

Sealing WashersID 23-24mm NBR Oil Seal Nitrile Rubber Double Lip TC/KC/VC/TG Type For shaft OD 30-52mm Height 4-12mm 10Pcs in a PackProduct InformationName:NBR OIL SEALMaterial:High quality nitrile rubber + skeleton + springColor:BlackTemperature:-20 to +100Shore Hardness:70°±2°Size:Inner diameter * Outer diameter * Thickness (unit: mm)Type: TC/TG/KC/VCWorking speed: line speed 15M/SMaterial characteristics: oil resistance wear resistance anti-agingThe role of the skeleton oil seal is generally to isolate the parts that need lubrication in the transmission parts from the output parts so as not to let the lubricating oil leak which is usually used for the skeleton oil seal rotating shaft which is a rotary shaft lip seal. The skeleton is like the steel bar inside the concrete member which acts as a reinforcement and allows the oil seal to maintain its shape and tension. According to the type of skeleton it can be divided into inner skeleton oil seal outer skeleton oil seal and inner and outer skeleton oil seal. The skeleton oil seal is made of high quality nitrile butadiene rubber and steel plate with stable quality and long service life. Widely used in automobile motorcycle crankshaft camshaft differential shock absorber engine axle front and rear wheels and other parts.1 to prevent sediment dust water and other from outside into the bearing;2. Limit the leakage of lubricating oil in bearings. The requirements for the oil seal are that the size (inner diameter outer diameter and thickness) should meet the requirements; It is required to have appropriate elasticity which can properly jam the shaft and play a sealing role; To heat wear good strength resistance to media (oil or water etc.) long service life.Rational use of oil seal should pay attention to the following points:(1) Shaft speed Due to design and structural reasons high speed shaft should use high-speed oil seal low sp

• Sealing Washers
• Name:NBR OIL SEAL
• Material:High quality nitrile rubber + skeleton + spring
• Color:Black
• Temperature:-20 to +100
• Shore Hardness:70°±2°
