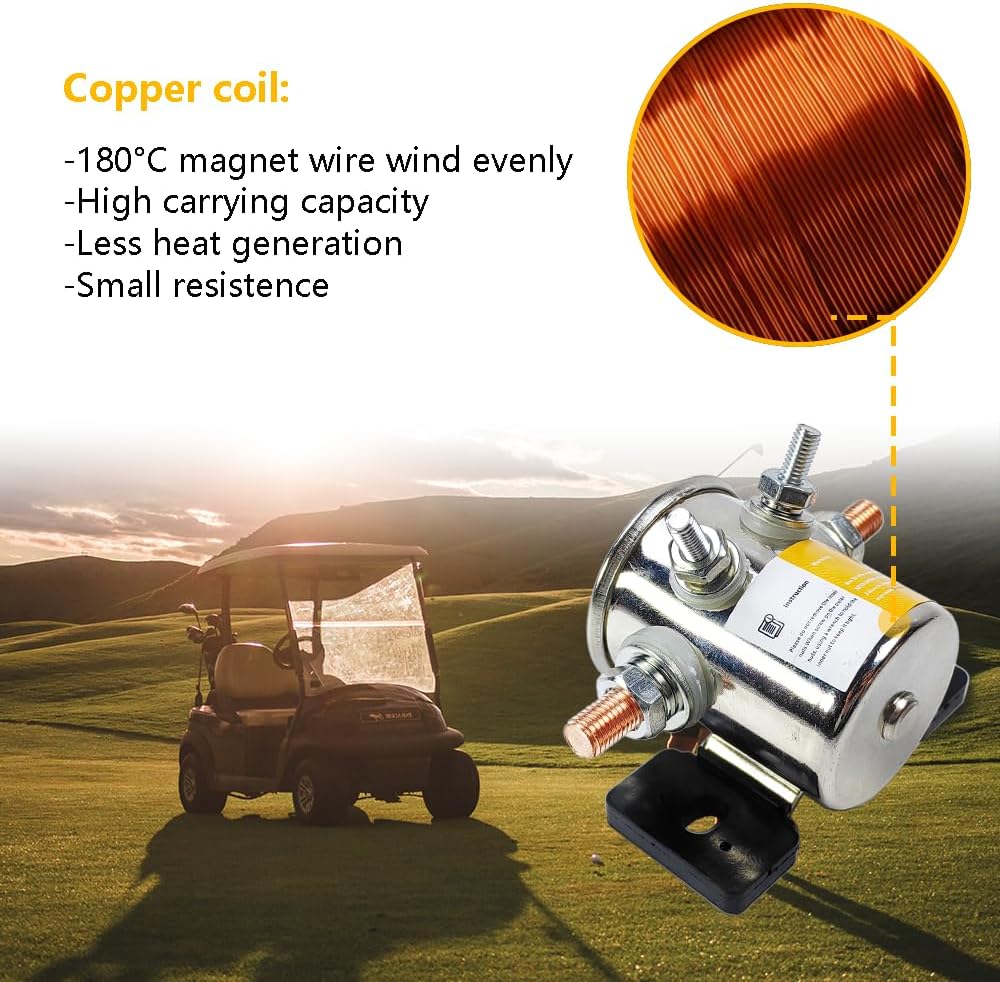

36 Volt #70 Series Continuous Duty Solenoid Relay Nickel-Plating with Resistor & Diode Kit | Fit for EZGO Electric Golf Cart, Upgrade Mount Bracket | OE# 27855G01 11761G1 27855G02 31680G1 3016
Product details
| Management number | 233897282 | Release Date | 2026/06/27 | List Price | US$6.04 | Model Number | 233897282 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
the starter solenoid relay is a critical component in a vehicle's starting system, responsible for engaging the starter motor by allowing high-current flow from the battery. It plays a crucial role in the vehicle's ignition process and ensures smooth and reliable engine starting. If you experience starting problems with your vehicle, the starter solenoid relay is one of the components that should be checked for potential issues.
- 36 Volt 4 terminal SPNO heavy-duty solenoid for EZGO TXT, Medalist, Marathon 1971-2010 electric golf cart. Acts as the conduit between the golf car battery and starter motor, provides the electrical energy necessary to activate the vehicle's ignition system.
- Replaces part#: 70-120224 | 11761GA | 11761-G1 | 27855-G01 | 27855G01 | 27805-G02 | 27805G02 | 31680-G1 | 31680G1 | 3016 | Cole Hersee 24080 | Columbia Par Car 71468-85 | Melex 300668 | Legend 7-3668 | Pargo 318 3016 8427 | Karrior 704-00 | Otis A-11004 | Shuttlecraft 95-0079 |
- Product Includes: -1X Solenoid Relay | -6X Washers & Nuts | -2X Copper Wire Lugs | -1X Solenoid Resistor | -1X Solenoid Diode |
- Voltage: 36VDC | Resistance: 18Ω | Inrush current: 200A | Continuous Working Current recommend: 80A |
- Body Shell Plating: Nickel-Plating | Mounting Bracket: with Upgrade Cusion Pad | Mounting holes: 5/16 x 19/32, 2-13/64 on centers |

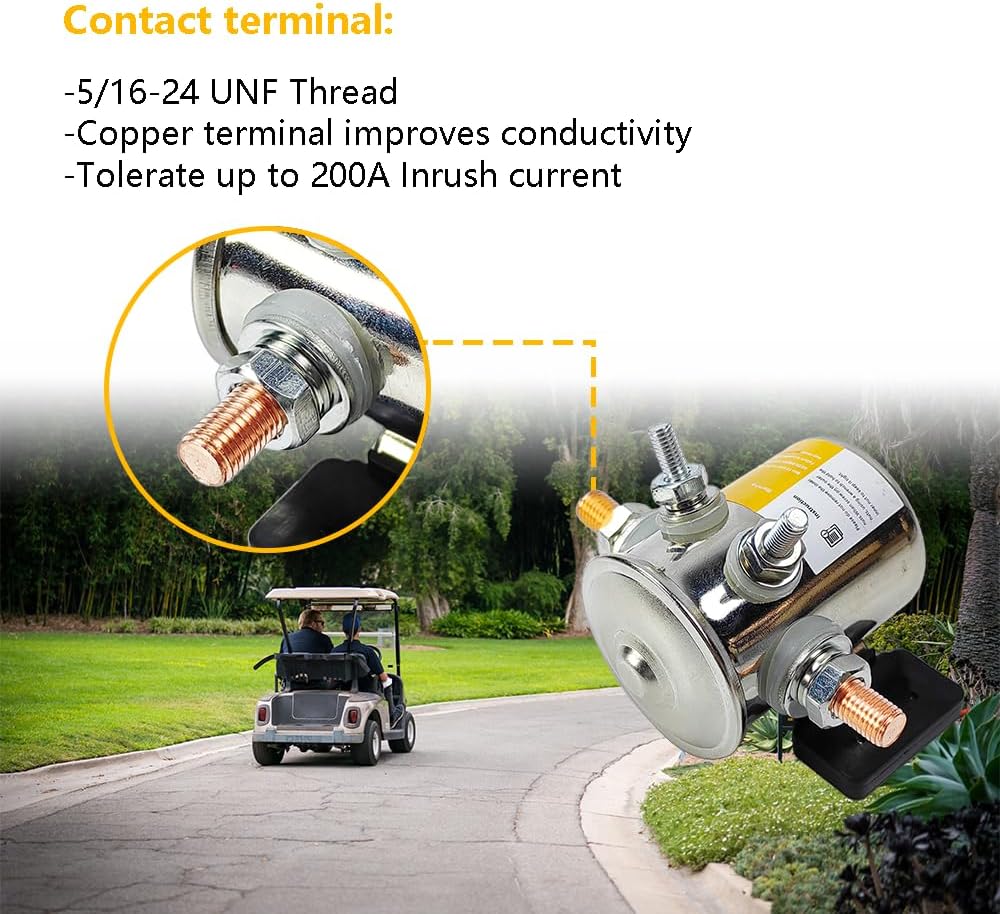

- Contact Form: SPNO (Single Pole Normally Open) | Contact Termination: 5/16”-24 UNF Thread | Coil Termination: #10-32 UNF Thread |
- WARNING: This is a Normally Open solenoid, Max 10 min continuous duty @ 150Amp, NEED BREAK otherwise it will be overheated.
- Warranty: For any reason, if you are not satisfied with your purchase, contact us directly. We offer 1-year warranty, 100% satisfaction guarantee.
| ASIN | B0CNP2DG9N |
|---|---|
| Wattage | 32.4 watts |
| Brand Name | LLNSEAUTO |
| Part Number | S048-435368-36V |
| Coil Voltage | 36 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | LLNSEAUTO |
| Mounting Type | Screw Mount |
| Connector Type | Crimp |
| Current Rating | 80 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 18 Ohms |
| Contact Material | Nickel |
| Minimum Switching Voltage | 35 Volts (DC) |
